Thermal Transfer Flexible Packaging Ribbon

Thermal Transfer Flexible Packaging Ribbon | VideoJet Markem Allen Coding

Offerings

Some Compatible OEM Product Codes



  •  General Specialty all-resin & wax-resin flexible packaging ribbons : for primary coding or printing directly onto flexible packaging films, foils, and labels respectively - using Domino , Videojet , Markem-Imaje , Allen Coding , Diagraph , Norwood, Toshiba , ICE Zodiac , Open Date , and other thermal transfer overprinters (TTO).
  • Application-Specific Specialty all-resin NE flexible packaging & labelling ribbons for: boil-in-the bag, hot fill, cosmetics & meat packing, medical/healthcare (bags/pouches/wrist band) applications.



General Specs



  • Core Material; standard cardboard/plastic, with or without notches.
  • Core ID ; 24.5mm
  • Core make-up: all ribbons wound centrally on single or twin core, with or without notches
  • Inking; coated in or out
  • Ink formulations: anti-static
  • Print speeds: up to 1200mm/s
  • Ribbon dimensions: custom and standard widths (20mm - 220mm) and lengths (up to 1400m)
  • Ribbon lead/trail configurations: clear/clear. metal/metal, and IIMAK Clean Start technology
  • Custom/non-standard core ID and ribbon dimensions, upon request
  • Ribbon Certifications & Approvals: include REACH/SVHC 1907/2006/EC, RoHS/Heavy Metals 2011/65/EU, ISEGA, BS5609, UL 969, US FDA Food Contact, EU Food Contact 1935/2004/EC


                          Ribbons supporting a comprehensive range of
           thermal transfer over-print (TTO) printers & substrates

Our near edge [corner edge & true edge] thermal transfer wax-resin & all-resin overprinting ribbons are universal



  • DPN- M255, M295C, M295 PLUS, M295HD, TR4500, TR5500, TR4085+, TR5050

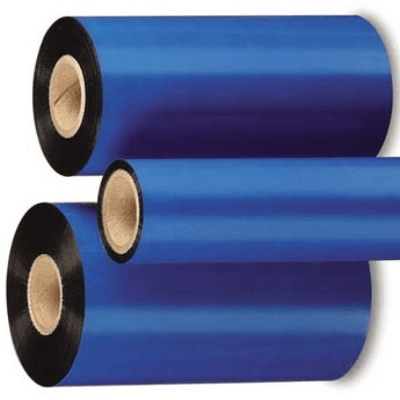

  • Armor-IIMAK - NETFLEX +, NETFLEX + XL, NET MARK IQ, INKANTO AXR 600, APR 600, &  AXR100
    FMA030QM, FMA055KW, FMA055NRG, FMA030RQ, FTC109NR7F, FND110NR7, FTC131NT, FVJ040FS, FVJ040QM, FVJ055NSL, FMA033NF, FND160QN, FND080QN, 813810090055BK, 813520070040BK, etc
  • SONY- 18100232, 18102232, 18103524, 18103774, 18104894, 18104911, 18105247, 18105479, 18105482, 18105484, 18105485, 18105489, 18105527, 18105529, 18105562, 18105599, 18105691, 18105717, 18105729, 18105792, 18106237, 18106521, 18106524, 18106665, 18106681, 18106682, 18106703, 18106870, 18106982, 18107080, 18107171, 18107132
  • Union Chem US574, US774, US660, UX104, etc
  • ITW - B128, P110, P110W, P310, D321, B112, B324, B325, B813, B814, P311025TIP, P310110ZIP, P311110TOP
  • RICOH - B110A, B120E, B128/M95, B130ED, B130EV, D110A, D110C, D210A, D310A
  • MARKEM IMAJE -  3210, 3310, 3410, 3510, 3511, 3520, 3610, 3710, 3810, 3811, 3818, 3820, 3821, 3901, 3910, 3911, 3920, 4910, 5710, 5810, 6910, 7810, Xpert, Xtra, Xceed series. 813520090130, 813810045110, 813710060080, etc
  • VIDEOJET - Ultra, standard, super-standard & premium. 15-S55WQ10, 15-S30KQ25, 15-S55KQ10, 15-S110WQ5, 15-R55KQ10, 15-R30KQ25, 15-R110KQ5, 15-S110KQ5, 15-R30WQ25, etc
  • DOMINO - (WR1, WR2, WR3, R). V-WRI-WT-25-1000, V-WR1-BK-130-650, V-WR2-BK-55-1200, V-WR2-25-450, V-WR3-BK-55-1200, V-WR3-BK-130-600, V-R1-BK-25-600, etc
  • ALLEN CODING - Typ 200, Typ 201, Typ 202, Typ 405, Typ 408, Typ 409; B.4505.50200, B.450G.60200, B.450M.00200, B.450G-60480, B.450B.00408, B.4505.50201, etc
  • NOVEXX - Chess, Pua, Lion, Tiger, Tiger XXL, Xxtreme
  • TOSHIBA TEC- AG2, AG4, AG5, RS1, AS1,BSA40110AS1, BX730176RG2
  • ICE Zodiac - Solid State Coder, Pegasus HS, Zodiac HS, Hawk, Vulcan, Falcon, Eagle
  • OPEN DATE - Thermocode 32s, 32e, 53c/e/l/m/s, 107c/l/m/s, IQ/IQ²
  • BELLMARK Easyprint - III, C & I, X, DUO. TR1003, TR1005, TR1018, RE1074, TR1088,  TR1127, TR1136, TR1151,
    TR1163, TR1166, TR1189, TR1254, TR1262, TR1280, TR1284, TR1286 TR1290, TR1293, TR1312, TR1404
  • OTHERS -  Kortho, and EasyPrint coders

Products

Specialty Ribbons For General Applications

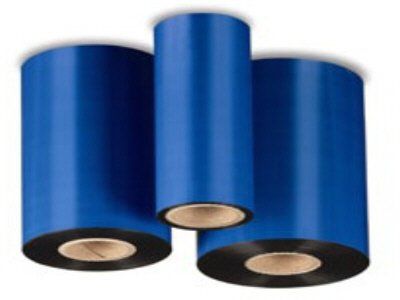

FLEXIBLE PACKAGING THERMAL TRANSFER RIBBONS - H/S Film + Foil + Label printing
Thermal transfer Videojet Markem Domino Allen Coding ribbons for flexible packaging

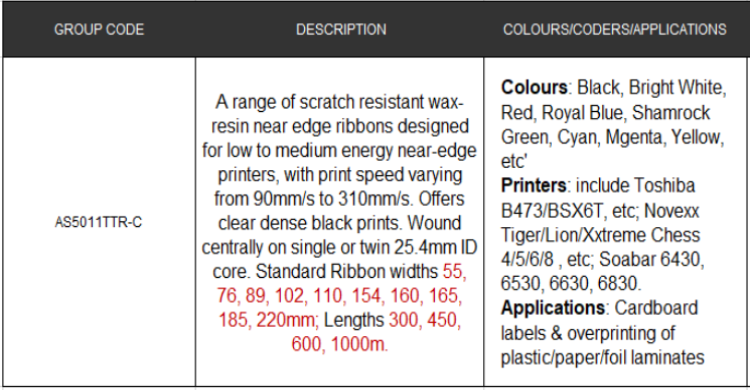

FLEXIBLE PACKAGING THERMAL TRANSFER RIBBONS - Desktop & low speed label printing

Avery Monarch Novexx TEC Toshiba Thermal Transfer Ribbon for flexible packaging labelling

Other Substrates:
Synthetic Film (coated & uncoated): Polypropylene, Polyethylene, Polyester, Nylon, Polyolefin (1073B Tyvek, etc),                                                                                      PET/Metalised PET;  Metallised Foil.
Paper: Gloss, Coated, Uncoated, UV Vanished, Synthetic Kimdura®, Valeron®, Polyart®,

  Application-Specific Specialty Ribbons

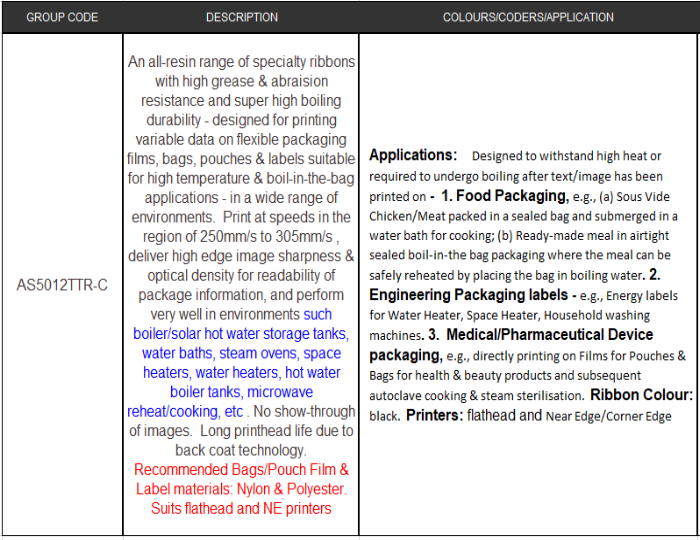

 Boil-In-The-Bag Packaging Ribbon**

Boil-in-Pouch & Temperature Resistant Flexible Packaging Thermal Transfer Ribbon

 ** Formulated for applications that require boiling and high heat
       resistance after text/image has been printed on the packaging
  ** Laboratory, biological, cosmetics, tea/coffee/food pouches & bags for
       sterilisation or content/food heating where conventional cooking is
       unavailable (e.g., during earth quakes and other natural disasters).

 ** High image density and excellent UV, scratch & chemical resistant prints

 ** Substrates: Nylon, PP, PE & Polyester packaging films

 ** Coated out or in for printers including Toshiba TEC Novexx, Soabar

 ** Supplied with application in mind. (printing applications & print
       environments vary; so too are the ribbons required for them)

 ** Buy Now (standard sizes) or Request a Quote (any size)

Hot Fill Packaging Ribbon*

Hot Fill Flexible Packaging Thermal Transfer Ribbon

* Among others, formulated for prints that withstand temperature
    variability in container content, heating & cooling profiles, or due to spills
    during the hot fill & hold process

* Overprinting hot fill flexible packaging films and laminates for liquids,
     fluids, meat stews, puree, and wet goods.
 * Excellent for printing small text & barcodes without rub-off.
* High density imprints on thin films; resistant to re-transfer when sealing.

* The optimal choice for hot fill & proven option for Videojet Dataflex
    15-X55KQ10, 15-X110KQ5 and others.

* Buy Now ( standard sizes ) or Request a Quote (any size)

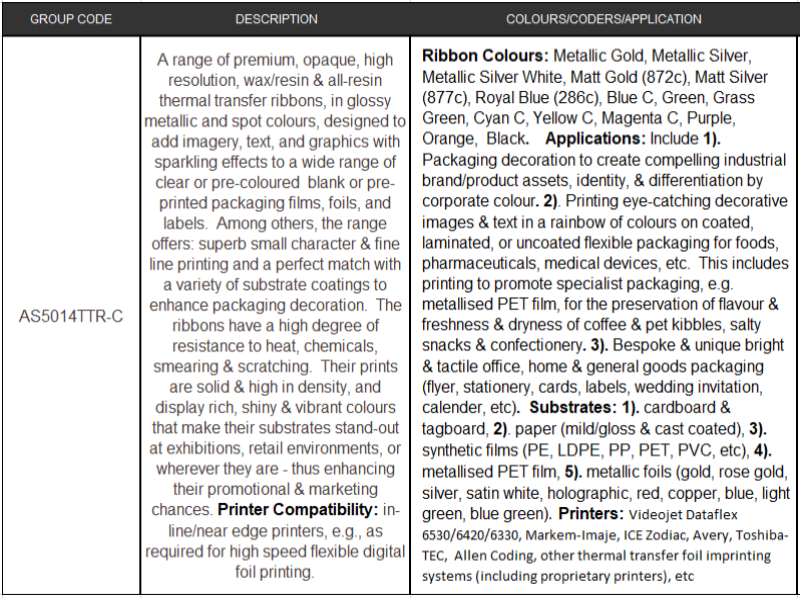

Decorative Flexible Packaging Ribbons***

  No need to foil Stamp. Go TT!

*** And, you can add our Inv UV fluorescence inks to your beauty & cosmetics packaging, for example, to protect your brand and manage your supply chain.

***The outer appearance of your product - the packaging design & finish - determines the attention it attracts on the shelf.
*** Choose & imprint our metallic & spot colours for your unique packaging decoration - graphics, backgrounds, borders, and virtually any design printable by thermal transfer printers.

*** REQUEST A QUOTE (any size)

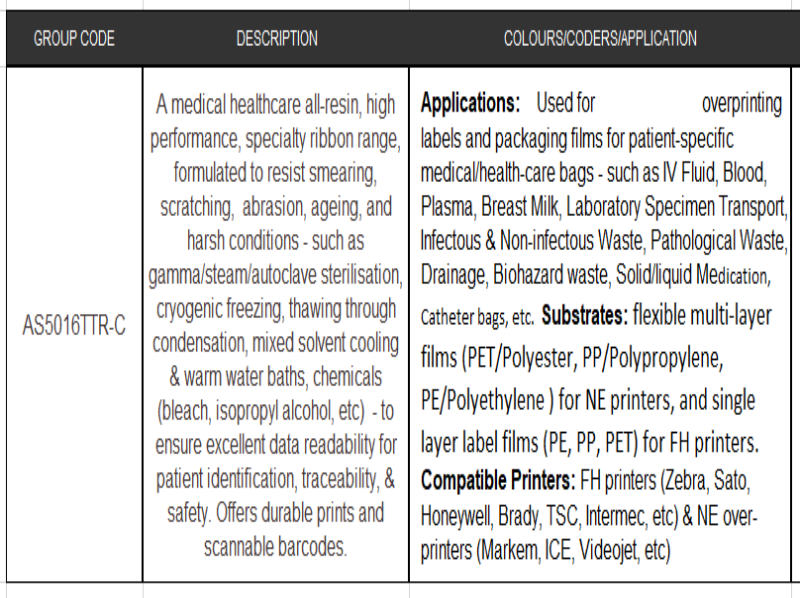

Patient-Specific Healthcare Bag Printing Ribbons

Patient Specific Healthcare blood IV solution Medical waste Biohazard Bag Ribbons

 General Remarks

  • Our ribbons are designed for in-line near edge (NE) or corner edge overprinting


  • Colours: NE ribbon colours to imprint standard and decorative text, barcodes, backgrounds & images on metallised and non-metallised label and flexible packaging film surfaces;

    - Standard black, blue, sapphire blue, red, opaque white
    - Metallic gold, metallic silver (decorative metallic silver for black/dark flexible film substrate)


  • Our black ribbons produce dark, high contrast, scratch & smudge resistant images

  • Print Speeds: low (up to 300m/s) and high (up to 1200m/s); with ink transfer temperatures up to and including 74°C, 82°C & 150°C.


  • Ribbon Core types: Cardboard or standard Plastic (the same used by OEMs).

  • Ribbon Dimensions: exactly OEM length & width, unless otherwise specified by us or agreed with the customer


Select & add security to your project with your brand's identity colours

     Specialised NE Packaging & Labelling Ribbons

    Super high boil-resistant boil-in-the-bag ribbons for food, healthcare, cosmetics applications. Hot fill ribbons
    for Videojet, ICE Zodiac and other printers.   Hazard/Safety warning ribbons

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button


  • AS5012TTR-C, AS5013TTR-C, AS5014TTR-C & AS5016TTR-C are group codes for our application-specific ribbons, listed on the left and above. For example, AS5013TTR-C, our hot fill packaging range, offers ribbons for use with high speed TT printers (including Domino V-series) in high volume bag forming, labelling, shrink wrap, and vertical/horizontal form, fill & seal machine flexible packaging environments. Our hot fill ribbons mark/code their substrates (film, shrink wrap, etc.) before the containers (pouches, bags, etc.) are formed, filled, and sealed. So, these ribbons are designed to withstand harsh temperatures upon exposure to content splashes during filling, steam sterilisation, or freezing, etc.

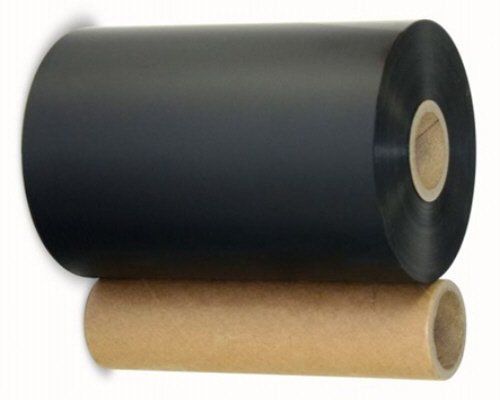

  • AS5010TTR-C and AS5011TTR-C are group codes for other specialty ribbons. These include our long length  ribbons developed from 4 micron based films for overprinting Polyamide flexible Films using Markem X60 printer.

  • A range of specialty ribbons for general and specific (hot fill, healthcare, boil-in-the -bag, decorative) applications. For example, healthcare ribbons for labelling and packaging applications to assure proper and accurate identification of patients and products (wristbands, vials, specimen slides, blood & plasma bags, IV fluid bag, biohazard waste bag, pharmaceutical  & nutraceutical packaging) specific to them.

  • Use our NE metallic silver ribbon for your dark/black flexible packaging films. [Visit our textile ribbon section for red, white, and metallic silver ribbons for printing labels with dark/black coloured fabric backgrounds].



High legibility Metallic Silver Resin Ribbon for dark/black flexible packaging films
Warranty and Hazard Signage Red Resin Ribbons
