Thermal Textile Care UV Coding Resin Ribbons

Thermal Transfer Ribbon | Resin UV MICR Flexible Packaging Textile Care

Offerings

General Specs
  • Core sizes: 25mm or 34mm cores.
  • Core materials : monarch white/black plastic (with 3 spline) and standard cardboard/plastic, w/without notches
  • Ribbons are wound centrally on a single or twin core as per OEM, delivered flush with core.
  • Inking: ribbon is supplied with ink coated inside or outside, depending on printer
  • Print head life: low friction, anti-static back-coat prolong the life of print head.
  • Printer compatibility: suitable for most flat head and some low to high speed near edge printers
  • Substrates: synthetics (PE, PET, PP) and cloth (acetate satin, nylon taffeta, polyester, satin, coated) - in standard variations

Some Compatible Textile Ribbon Codes

Our best-in-class thermal transfer textile non-fabric & fabric care resin ribbons include or replace the following:
  • DPN- R350, R395, 18107427, 18107424, 18107391, 18107390, 18107388, 18107387, 18107386, 18107385, etc
  • SONY- TRX75, TRX95,
  • RICOH - D110A
  • CAB - CR43, CR43W, R71 (textile)
  • ITW - B121, B128, B324, B325, B813, B814, D321
  •  DYNIC - HL30, HL35, HL45, HL101
  • ARMOR INKANTO - AXR TX, AXR 900 - T64386IQ, T64381IQ, T64379IQ, T64378IQ, T64376IQ, T64377IQ, etc
  • TOSHIBA TEC- AS3
  • TSC PR40300, PR55110, PR60600, PR80600, PR110110, PR110300, PR110600, PR220600, etc
  • AVERY DENNISON/PAXAR/MONARCH - HS1111, HS1011, HS1112, HS1114, HS1117, HS1119, HS5140,
    CT1111, PL1111;

Products

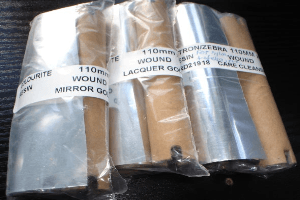

 THERMAL TRANSFER TEXTILE CARE RIBBONS/FOILS (all resin) (home laundry, stone wash, steam processing & dry cleaning)

GENERAL REMARKS

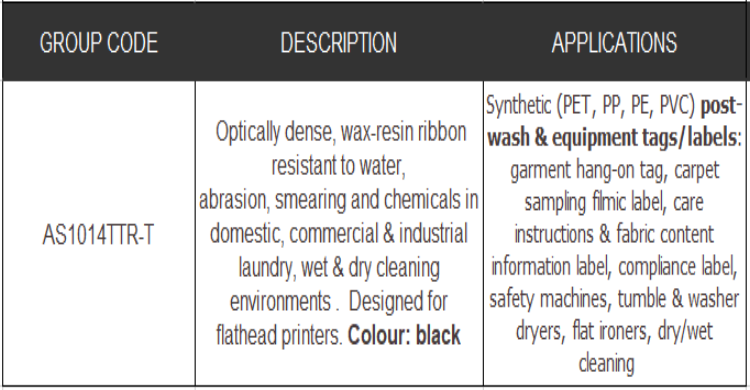

  • AS101xxxx-T is our group code for textile equipment and fabric (inline- & post-) wash care label/tag printer ribbons (irrespective of printer or substrate).
  • Our fabric ribbons (all-resin) print on natural & synthetic clothing label materials (polyester, acetate, nylon, satin, cotton, poly-cotton, and their blends), designed for standard- & harsh- wash environments (e.g, stone wash).
  • Our non-fabric ribbons (wax-resin & resin) print on synthetic filmic label materials (PE, PET, PP, PVC, PI, acetate) for use on textiles & textile equipment/machinery and where high resistance to solvents is required, etc.
  • We offer application-specific ribbons (see below) with printing speeds up to 300mm/s, dry cleaning temperatures up to 95°C, heat resistance up to 200°C, and ironing resistance up to 150°c.
  • You  buy online now or request a quote by specifying the length, width, and core diameter & material of the ribbon rolls that you wish to buy
  • Our bedding and furniture traceability & compliance label printer ribbons, for example, enable durable & permanent prints of information such as filling materials & product ID that are required by law.

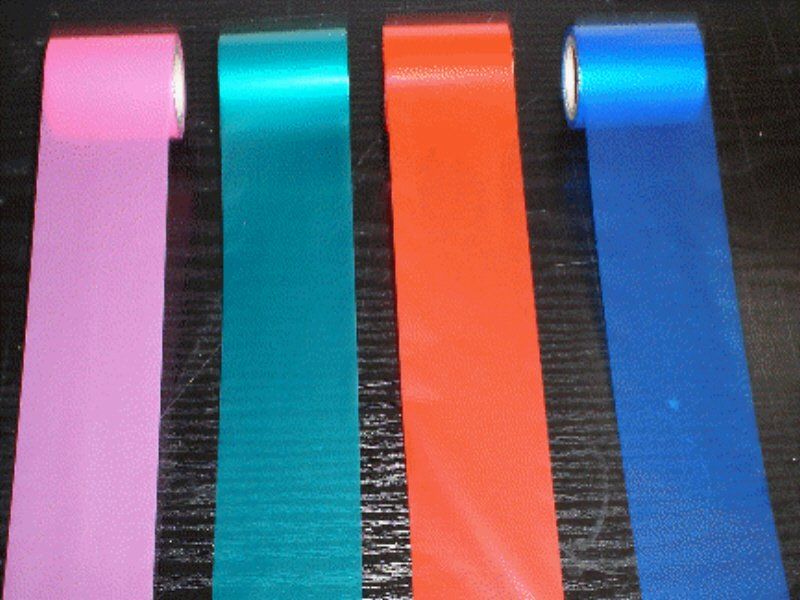

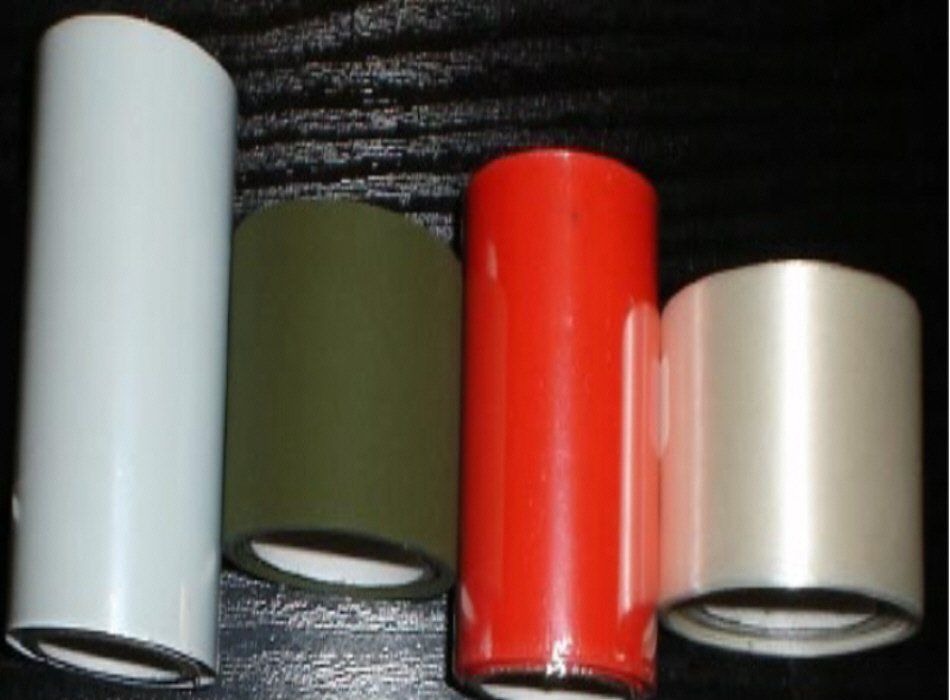

  • Ribbon Colours:
    - Standard black, opaque white, light blue (3005C), grey (425C), dark blue

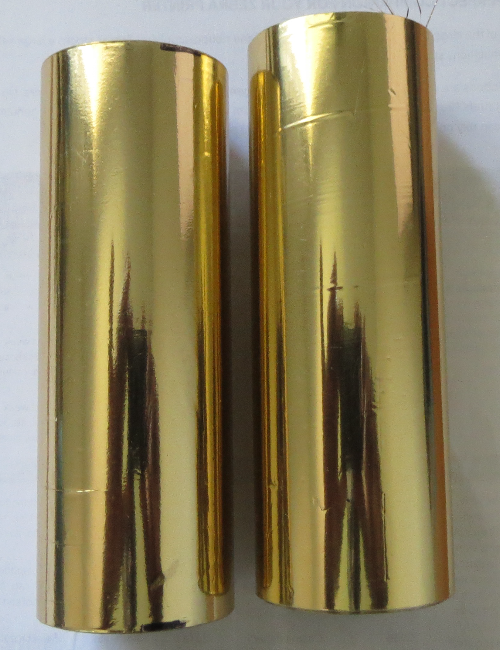

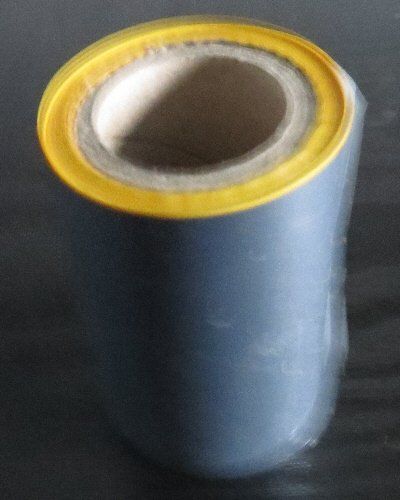

       (289C), red, green (339C), navy blue (294C), metallic gold, metallic silver
    - Specialty premium range: textile red, textile opaque white, textile metallic
      silver for black/dark substrates     (satin, taffeta cloth).
  • Compatible Printers: flathead & near edge.- e.g., CAB A4+T, XD4T, A4+, XC4, XC6, Squix 4MT, Squid 600MT, DC4; Soabar DT (XD4t), T1, T2+, T4+, T5, DCt; Avery/Monarch/Paxar 6x6 & 61x series, 9800 series, ADTP1 & ADTP2; Zebra ZT220 ZT230, ZT420, ZT510, 220Xi4, Datamax, Sato, Intermec, TEC Toshiba, Citizen CL-S621, TSC-244Pro, Astromed QLS 3001, etc. [View more printers]
  • Minimum Order Quantity (standard products) (M.O.Q) = 1 box (per size).
  • Roll Widths: 25mm, 30, 33, 38, 40, 41, 50, 53, 55, 60, 70, 80, 90, 100, 105, 110, up to 150mm
  • Roll Lengths: 300m, 360m, 450m, 500m and 600m - depending on printer

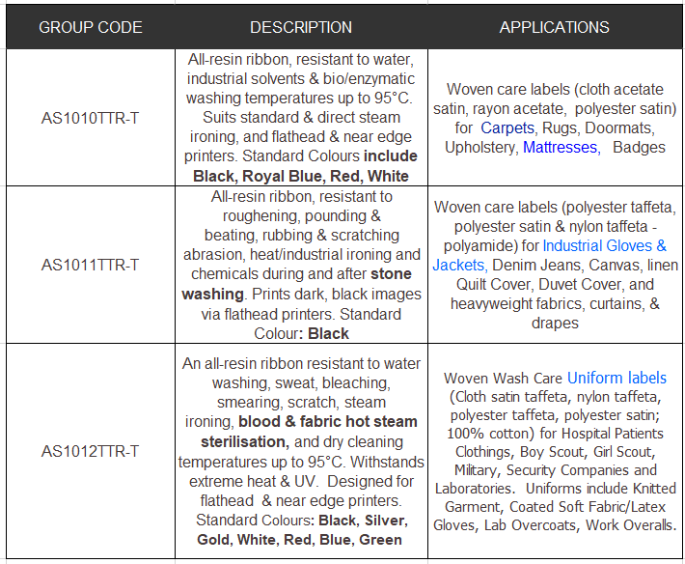

  Application-Specific Ribbons

  In addition to  features specific to each, images or prints from ribbons for each of the applications listed below are very resistant to dry cleaning, chemicals and solutions (including kerosine, engine oil, and bleaching agents) found in laundry and other environments. Click on a link for more info >>>>

    ** This premium red prints well on satin woven designer black fabric labels
    *   For blood steaming & medical device hot steam sterilisation labels

 *** For delicate fabric (sheepskin, leather, swede, etc) labels

  • Our Ribbons: matching the flexibility, tear resistance, heat stability, and aesthetics of your substrates- including coated woven & nonwoven fabric labelling materials
  • Zebra Intermec Videojet Soabar Toshiba Novexx Tharmal Transfer Ribbon - textile care, flexible packaging, MTTE UV security ribbon

    Slide title

    Write your caption here
    Button
  • Thermal transfer textile red ribbon on black fabric satin

    Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button
  • Thermal transfer textile red ribbon on black fabric satin

    Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button
  • Textile Red on Black Satin - thermal transfer printing

    Slide title

    Write your caption here
    Button
  • Double layer & single layer print textile red ribbons

    Slide title

    Write your caption here
    Button
  • Textile Super Premium Green - Military & Scouts Unforms

    Slide title

    Write your caption here
    Button
  • Textile Red Panel @ inkribbonpaper

    Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button
  • Use our ribbons & your printers to produce one- or two-sided, single- or multi-coloured, wash-care or post-wash care, filmic or fabric, labels for your apparel, footwear, textile equipment/appliance, or other products requiring identification and or authentication in today's environment!

Bedding, black satin, & our ribbon are for colour matching illustration only. Copyright reserved owners

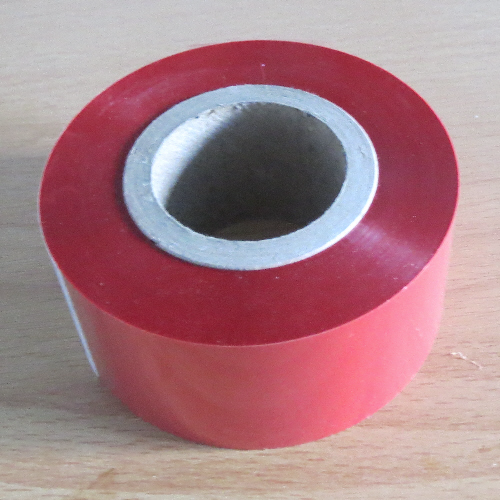

  • AS1016TTR - TRD. Textile Red all-resin ribbon: produces excellent edge definition, dark dense print images on black/dark substrate with superb resistance to abrasion, smudge, heat, solvents chemicals. Suitable for high speed printing, using flat head printers and less print energy. Two technology options: double & single layer printing ribbons, each offering excellent print visibility & durability at different costs

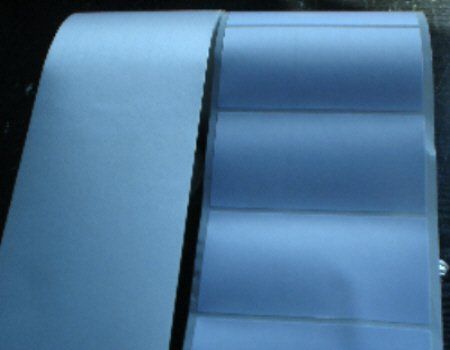

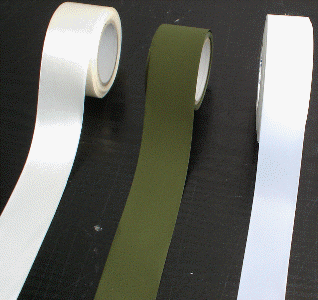

Examples Of Thermal Transfer Cloth Labelling Materials
  • Woven & nonwoven, coated & uncoated, black & white specialty fabric labelling materials for use across a range of industries

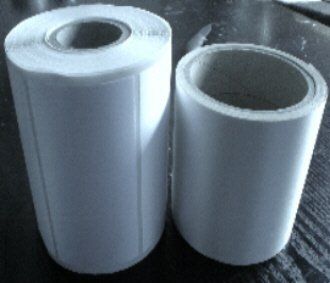

Compatible Label Materials

                                              Textile White.
                                   The Ultimate Opaque Bright White
                                                  on Dark/Black Cloth

  • Durable high heat resistant thermal transfer ribbons for your polyester & polypropylene autoclave & cryogenic labels for the identification of containers, instruments, apparel, wrappers, glassware, and any other item requiring disinfection, decontamination, or multiple sterilisation

                                       Textile Silver.
                                      Decorative & Incredibly Durabile
                                                   on Dark/Black Cloth

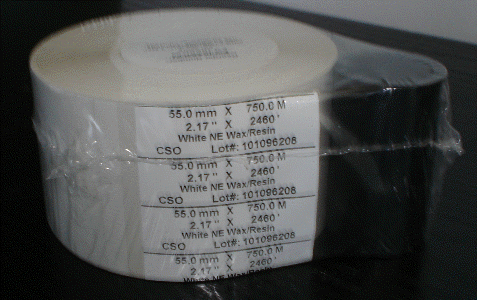

  • AS1017TTR - TWH. Textile White all-resin ribbon: uniquely designed for highly durable, dense, extremely opaque, full-white print images on dark/black substrates (labels). No undertones, no pale grey white. Simply the ultimate 100% opaque bright white! REACH & RoHS compliant, UL recognised, with excellent scratch /solvent/chemical resistance that soaks into the fibres of the substrate.

  25.4mm Cardboard/Plastic Core - Premium Textile/Synthetic Resin

Product Code Description Dimension (mm x m) Coated Side Box Qty (Rolls)
AS1014TTR-T4090150O Furniture compliance label printer ribbon 90 x 150 out 45
AS1010TTR-T1150200O Carpet label printer ribbon 150 x 200 out 25
AS1012TTR-T2150100O Denin Jeans label printer ribbon 150 x 100 out 25
AS1010TTR-T1110074O Doormat label printer ribbon 110 x 74 out 40
AS1010TTR-T1105110O Mattress label printer ribbon 105 x 110 out 40
AS1011TTR-T2040300O Stone Wash fabric label printer ribbon 40 x 300 out TBQ
AS1014TTR-T4105100O Laundry equipment label printer ribbon, synthetic textile resin 105 x 110 out 40
AS1012TTR-T2110110O Uniforms wash care label printer ribbon 110 x 110 out 40
AS1010TTR-T1095110O Upholstery label printer ribbon 95 x 110 out 45

Monarch 9800 Series & Paxar Plastic 110mm Wide Core - Premium Textile Resin

Product Code Description Dimension (mm x m) Coated Side Box Qty (Rolls)
AS1012TTR-T3110600O Monarch ADTP1, 9800 series Uniforms wash care label printer ribbon 110 x 600 out 40
AS1012TTR-T3110500O Monarch Paxar 6xx series Uniforms wash care label printer ribbon 110 x 500 out 40

General Remarks

  • We supply textile wash care & post wash label printer ribbons for domestic, commercial, & industrial applications
  • A typical list of ribbons and sizes is shown in both tables.  Others (standard and non-standard) are available in our  Store or via  Request for Quotation.
  • Avery Paxar Printer HS1xxx replacement ribbons: available on special plastic core widths (55, 89, 110mm)
  • Avery Dennison Monarch Paxar ADTP (ADTP1, ADTP2, ADTP2 ecoCut), 6xx series (636, 656, etc), and 9800 series (9805, 9820, 9825, 9830, 9835, 9840, 9850, 9855, 9856, 9860, 9870​, etc) printer ribbons
  • Inking: coated inside or outside, depending on customer machine
  • Ribbon colours: all ribbons in the table are black
  • Click on the buttons below to start buying.
  • Click here if you simply require further clarification
